Antique & Collectible Woodworking Planes
Patented / Unusual / Rare
& the Usual Fare



M.B. Tidey Patented July 4th 1854 Double Beveling PlaneM. B. Tidey Patented July 4th 1854 Double Beveling Plane  The Tidey Beveling Plane is one of the rarest and most unusual of all American Patented Planes. Only a handful of these planes are known.  The patent was granted on July 4th 1854.  The patentees name, NY location, and patent date info are stamped on the top curved brass piece.

I believe the record price at auction for one was close to 30K some years back.  Another example recently sold for 12K and while the ad for that one said flawless and used other superlative adjectives to describe its condition, the wood on this example actually looks much nicer than that one, or most of the other known examples, that can be viewed with a Google image search.

The body is Beech, and the arms, nuts, and washers are all Boxwood.  The Boxwood parts are all pretty nice and the Beech body has just a few minor scuffs.  The brass parts have a nice even patina, and have not been fiddled with or buffed.  This rare plane does have a couple easily restorable apologies.  One cutter is missing, and that side has a wedge with a different profile that fits well.  Also, the bottom brass piece of the front depth stop is missing. (see pic).  And finally there is another small brass piece and screw missing from the tail area.  Again, see the pics.  All of these minor issues would be relatively simple repairs to bring this rare piece back to its full glory.  An opportunity that will probably not repeat itself.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic


Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

Fine . . . . . $7500.00

LORET-TIDEY

To Order Email:  patentedantiques@gmail.com





Fales Patent Combination Plow Bead & Molding PlaneFales Patent Combination Plow Bead & Molding Plane  Amos Fales of Denver, Colorado was granted two patents for his combination plane design beginning in 1882. Fales had his plane made by Otis Smith of Rockfall Connecticut who was a gun maker. Otis Smith is not the Smith of Smith & Wesson fame.

Production or more accurately, sales ended in 1917 or so.  The Fales Patent Plane has to be one of the wackiest ideas for a patented woodworking plane ever produced. The idea probably looked good and sounded good on paper, but the finished product was destined for failure. Mr. Fales had obviously never heard of the KISS concept of Keep it Simple Stupid before coming up with this idea. The plane has 2 bottoms and a cutter for almost every possible profile. I read that can equal upwards of 240 or so separate pieces.

This plane is typically found with just the body as it had so many parts to be complete, that they usually became separated along the way.  This example is in what I imagine is an owner made box and has approx. 15 of the 3 piece cutter and bottom sets.   Roger Smiths PATAMPIA books have a complete story on the details.  There is a near complete example w/ 200 or so pats shown in the archives of my sales archive webpage www.AntiqBuyer.com on this page.

 https://www.antiqbuyer.com/All_Archives/TOOLS_ARCHIVE/archive-PATplanes1.htm

Click for Pic                Click for Pic                Click for Pic


Click for Pic                Click for Pic                Click for Pic                Click for Pic

TX-PP-FALES-13

Good  + . . . . . $595.00

To Order Email:  patentedantiques@gmail.com





Fales Patent Combination Plow Bead & Molding PlaneFales Patent Combination Plow Bead & Molding Plane   Patented in 1882 and 1884.  This is just the body and a few cutters w/ bottoms.  No rods, fence or additional parts.  There is a near complete example shown in the archives of my webpage www.AntiqBuyer.com on this page.   https://www.antiqbuyer.com/All_Archives/TOOLS_ARCHIVE/archive-PATplanes1.htm

Click for Pic                Click for Pic                Click for Pic                Click for Pic

TX-PP-FALES-P

Good  . . . . . $150.00

To Order Email:  patentedantiques@gmail.com






Siegley # 2 Combination Plane w/ CuttersSiegley # 2 Combination Plane w/ 15 Cutters  Jacob Siegley was a plane maker, based in PA.  He made both bench planes and combination planes like this. His combination planes were a work in progress and one will rarely find 2 that are exactly alike.  He made many subtle and significant changes to the design trying to get it just right.

Nice overall condition.  Minor spots of rust that will clean.  Most of the cutters are full length. This is an earlier version w/ unslotted cutters.  The japanning is original and nearly complete.  This example is in very nice condition.

Click For Pic            Click For Pic            Click For Pic            Click For Pic


Click For Pic            Click For Pic            Click For Pic

TX-SIEGLEY-C2

Good +. . . . .$295.00

To Order Email:  patentedantiques@gmail.com






Siegley Combination Plane w / CuttersSiegley Combination Plane w / Cutters  Jacob Siegley was based in PA.  He made both bench planes and combination planes like this. His combination planes were a work in progress and one will rarely find 2 that are exactly alike.  He made many subtle and significant changes to the design trying to get it just right.

Nice overall condition.  I am not the final word on where this model fits into the scheme of things age wise.  The cutter box is marked 1889.  Most of the cutters are full length. It is an earlier version w/ unslotted cutters.  The japanning is original and nearly complete.  Nice condition.

Click for Pic                 Click for Pic                 Click for Pic                 Click for Pic


Click for Pic                 Click for Pic                 Click for Pic                 Click for Pic                 Click for Pic


Click for Pic                 Click for Pic                 Click for Pic                 Click for Pic

TX-SIEGLEY-CBOX2

Good +. . . . .$275.00

To Order Email:  patentedantiques@gmail.com






Siegley Combination PlaneSiegley Combination Plane Jacob Siegley made both bench planes and combination planes like this. His combination planes were a work in progress and one will rarely find 2 that are exactly alike.  He made many subtle and significant changes to the design trying to get it just right.  This one is marked #2 on the fence.

Nice uncleaned condition.

click for Pic           click for Pic           click for Pic           click for Pic           click for Pic           click for Pic           click for Pic

TX-SIEGLEY-NBOX

Good . . . . .$95.00

To Order Email:  patentedantiques@gmail.com






Hardt Patent Block PlaneHardt Patent Block Plane  A very rare block plane in super condition.  Lots of original japanning with no chips, cracks, or other damage.  The patent # for this unusual plane is 502906 and it comes up with a Google Search.  Louis John Hardt of Yuba City California was granted his patent for a plane design on August 8th 1893.  In addition to the block plane offered here, he also made bench and jointer size planes as well.  It is not known how many sizes were offered or how many were produced, so few have ever turned up.  There are just a handful of the block planes that have ever been found.

It is a very distinctive design where the front end of the plane moves making the throat opening larger or smaller.  Another odd feature is that he utilized Sargent parts including the cutters, lever caps and in this case the iron cap on his own castings.  It has be theorized that there was just one production run in about 1893 explaining the relative rarity of the plane.  There is a more complete write-up and details in Roger Smiths first PATAMPIA book.   Very Nice!!

click for pic            click for pic            click for pic            click for pic


click for pic            click for pic            click for pic

DM-HARDT

Fine . . . . . $2795.00

To Order Email:  patentedantiques@gmail.com







Steers Patent No. 306 Smooth PlaneSteers Patent No. 306 Smooth Plane  This is a 1st model given the style of the blade adjuster.  The patent for the design was granted in 1883.  The Rosewood strips inlaid into the sole are pretty nice.  The knob to tighten the cutter cap has been repainted for some reason.   Handle has been glued.  Interesting and nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic


Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-STEERS-S

Good + . . . . . . $175.00

To Order Email:  patentedantiques@gmail.com







Steers Patent No. 307 Jointer PlaneSteers Patent No. 307 Jointer Plane  This is a 1st model earlier version given the style of the blade adjuster.  The patent for the design was granted in 1883 and the cutter is marked with that info.   Later models utilized a frog similar to Stanley designs.  The handle horn is missing.  This plane is in otherwise pretty nice condition.  The rosewood sole strips are pretty nice noting some chipping.  Marked proper long cutter.  A hard to find plane.  There is a complete write-up and details in Roger Smiths PATAMPIA books.  Nice!!

click for pic            click for pic            click for pic            click for pic


click for pic            click for pic            click for pic

MOA-STEER

Good  . . . . . $225.00

To Order Email:  patentedantiques@gmail.com

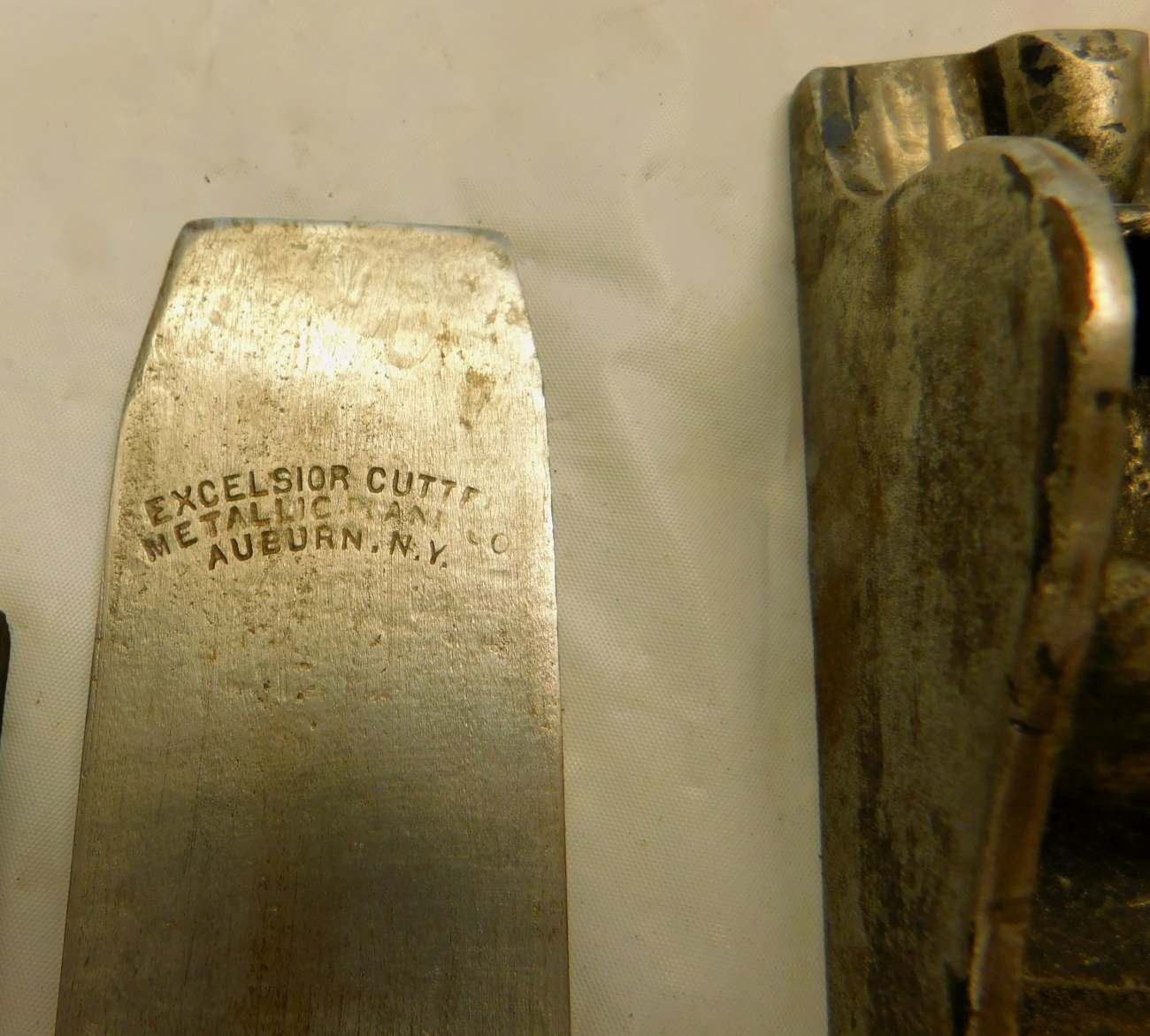

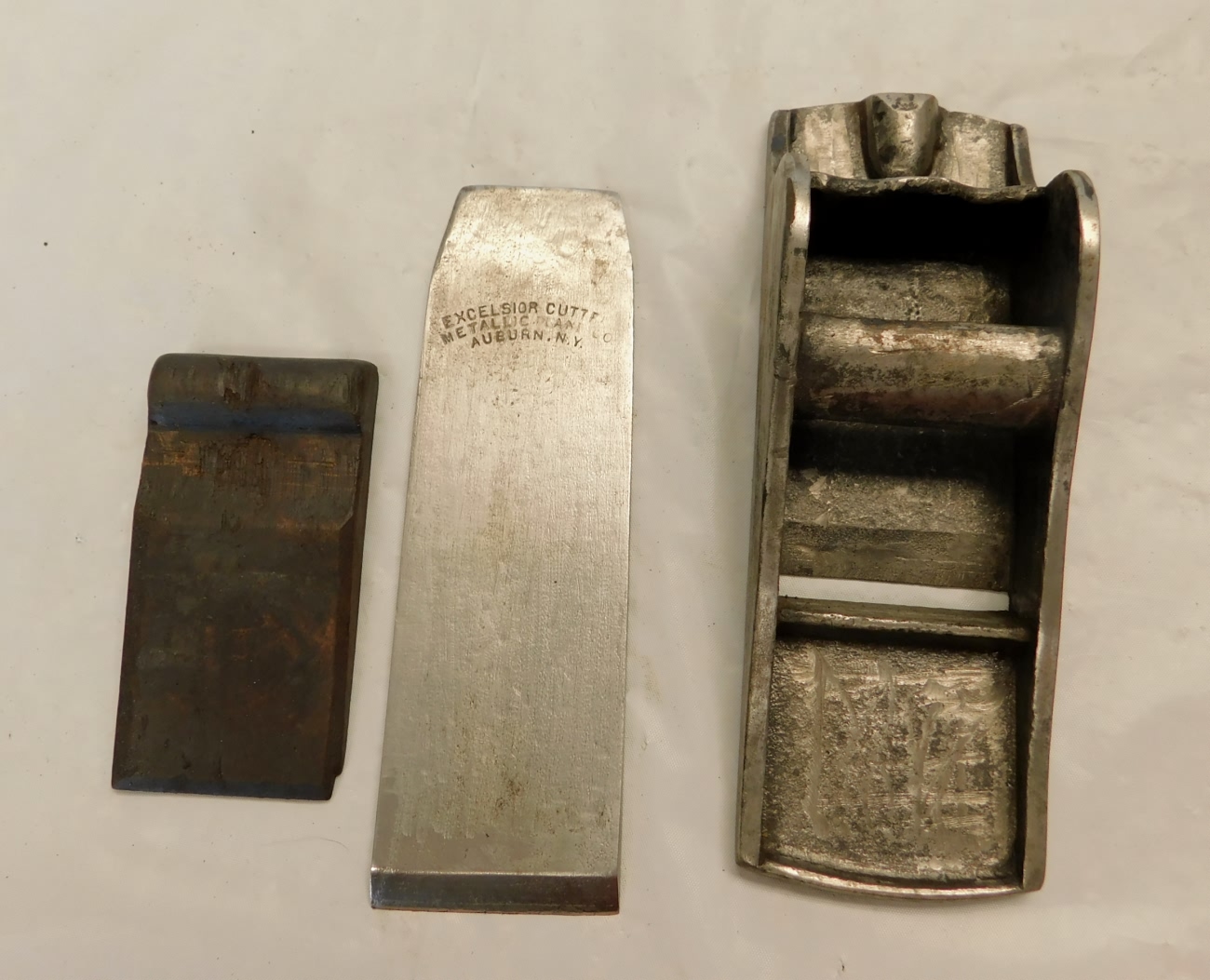

Metallic Plane Co of Auburn NY Fillister PlaneMetallic Plane Co of Auburn NY Fillister Plane  A pretty rare plane in pretty nice condition.   The Excelsior stamp on the cutter is the only marking.  Lots of original japanning with no chips, cracks, or other damage.  The Rosewood handle is beautiful.  The oftentimes missing fence for the fillister bed is present, undamaged and nice.  The screws for the fence may be replacements as they are different from each other and not the typical Mushroom cap style typically seen.  This type of plane is a well known and documented.   A fellow named Storkes who partnered with Palmer got the patent.  They made a line of well received bench planes that were popular in the NY / New England region back in the last quarter of the 19th century. There is a complete write-up and more details in both of Roger Smiths PATAMPIA books.   Very Nice!!

click for pic            click for pic            click for pic            click for pic


click for pic            click for pic            click for pic            click for pic

RNO-MET-FIL

Fine . . . . . $695.00

To Order Email:  patentedantiques@gmail.com





Birmingham Batwing Rabbet PlaneBirmingham 5" Batwing Rabbet Plane  This small cast iron Birmingham rabbet plane is the 5 1/8" size from Birmingham's line of "Batwing" rabbet planes.  This example is only the second or third of these rare planes to ever turn up.  One of those other known examples sold in a Browns Tool auction for over 3K a few years back.

This 5" Batwing Rabbet Plane is rarer than the smaller 4" size.  The 4" Birmingham Batwing has turned up several times in auctions over the years and is known in several other top tier collections.  John Wells, now past, a well known plane authority, wrote up a very detailed analysis of this 5" variant in the Winter 2010 issue of the Fine Tool Journal / FTJ.  He analyzed all of its characteristics and determined all is right with this rare variant.

The overall condition is very nice with it still sporting approx. 85% or more of its original japanning. There is no rust or pitting to speak of.  The cutter is proper and original.  The spanner type cap nut is also proper and original. The throat is good, and there are no other condition issues. There is no lever cap, and as John Wells analysis determined, this is correct for both the 4" & 5" sizes of this plane.  RARE, Different, and Nice!!

Click for view                Click for view                Click for view                Click for view


Click for view                Click for view                Click for view                Click for view

AMN-5-BIRMBAT

Good+ . . . . . . . $1750.00

To Order Email:  patentedantiques@gmail.com





Mayo Patent Plow PlaneMayo Patent Plow Plane w/ Cutters  This is a very nice example of the Mayo Plow Plane.  Roger Smith goes into great detail concerning this pane and how it is related to the Philips Plow in his seminal work on American Patented Planes.  The condition of this example is very nice.  It retails much of its gold finish and highlights.  The box of cutters is nice as well.  Note the original Rosewood handle and graceful horn.  The depth stop is present.  A fine example that deserves a place in any collection focused on patented metallic planes of the 19th century.  Different, Unusual and Nice!!

Click for view                Click for view                Click for view                Click for view


Click for view                Click for view                Click for view                Click for view


Click for view                Click for view                Click for view

CC-MAYO

Good+ . . . . . . . $1950.00

To Order Email:  patentedantiques@gmail.com






c.1860 - 1870 Mystery Jack  Planec.1860 - 1870 Mystery Jack Plane  This unusual plane is a mystery.  It is an early plane that dates from its construction characteristics and design dates from the 1860's or a bit later.  It has a nice Moulson cutter in it.  The frog design looks a lot like Stanley's type 3 planes or Leonard Bailey's Victor style or line of planes.  The lever cap is cast, hollow in the back and has a distinctive look to it.  Also note how the handle is dovetailed into its position.  It is a great casting that was japanned.  A nice example of an early and probably unique plane.  Nice!!

click for Pic                    click for Pic                    click for Pic                    click for Pic                    click for Pic


click for Pic                    click for Pic                    click for Pic                    click for Pic                    click for Pic                    click for Pic

CCC-MYST

Good + . . . . .  $475.00

To Order Email:  patentedantiques@gmail.com






Holly Patent Smooth PlaneHolly Patent Jack Plane  Birdsill Holly began producing planes in 1852 shortly after forming the company Silsby, Race & Holly Co. located in Seneca Falls NY in 1848.

This 15 long Holly Patent Jack Plane would be considered a second model.  The plane is in very nice condition overall.  The main differences from earlier models are the way the handle is set up, and the design of the cast blade holder.  The bottom on plane has cast in corrugations as well.  The fragile lever cap is damage free.  The cutter is long and nice, but the logo is hard to make out.

A good looking early patented plane.  No rust or pitting.  Nice wood.  No apologies.  An early, rare, and desirable patented plane for the advanced tool collection!!

click for Pic                 click for Pic                 click for Pic                 click for Pic


click for Pic                 click for Pic                 click for Pic

CCC-HOLLY-JK-1

Good + . . . . .  $750.00

To Order Email:  patentedantiques@gmail.com

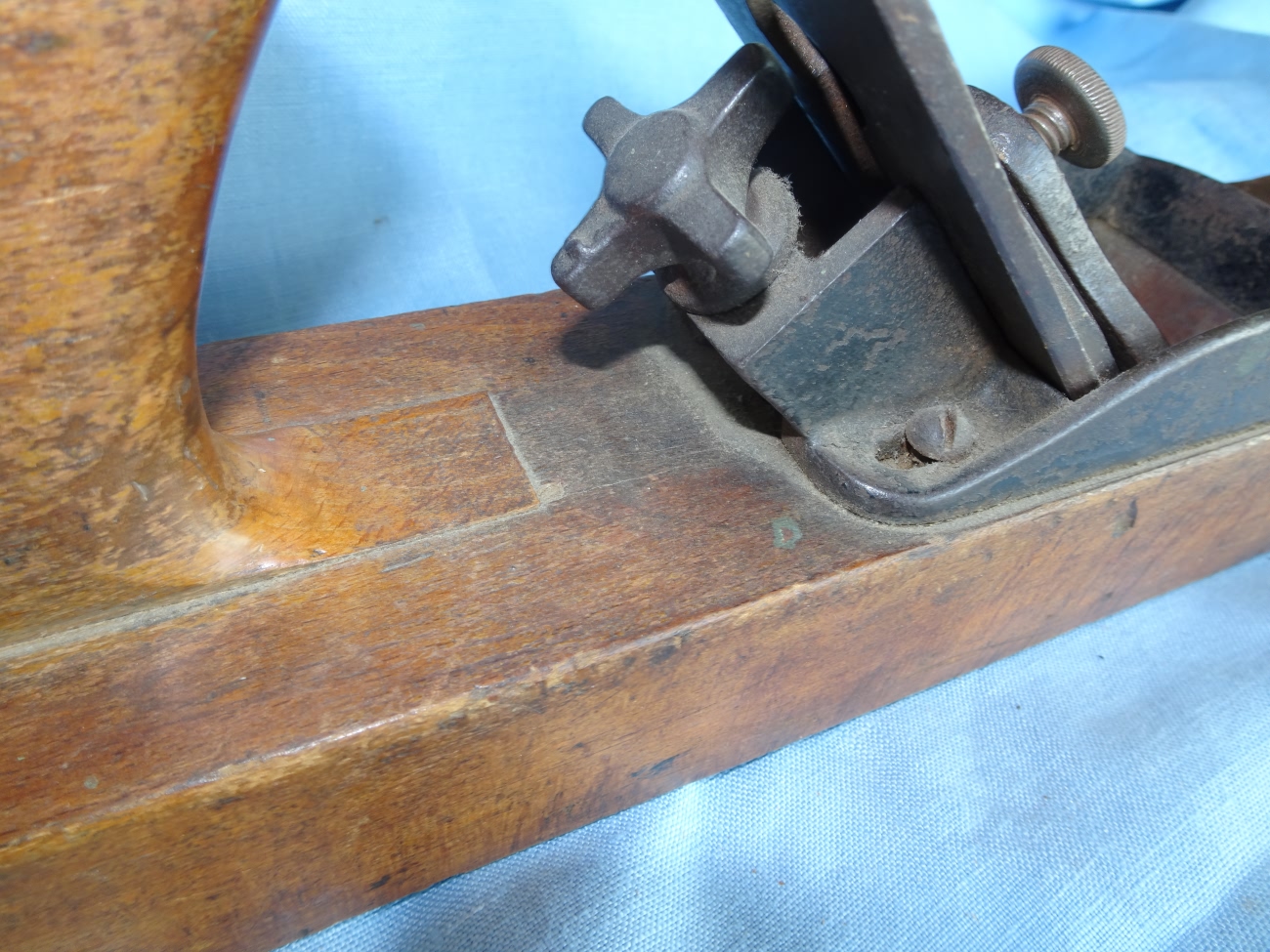

Worrall Patent 20Inch Transitional Jointer PlaneWorrall Patent 20" Transitional Jointer Plane   Thomas Worrall was granted his first patent for a plane in 1854.  Worrall formed and operated 2 different tool and plane making concerns, the Lowell Plane & Tool Co. and The Multiform Moulding Plane Co of Boston Mass.  According to Roger Smith he closed up shop sometime in 1858.  He was granted at least 5 other plane related patents in that short period.

This 20" Closed handle fore plane is in excellent condition.  This example is clearly marked on the nose of the plane and the cutter is marked as well.  It has a great look to it and is a nice example of one of the earliest American Patented planes that can be found.  Nice!!

click for Pic               click for Pic               click for Pic               click for Pic               click for Pic               click for Pic

CCC-WOR-20

Good + . . . . . . . $295.00

To Order Email:  patentedantiques@gmail.com






Worrall Patent Transitional Jointer PlanWorrall Patent 26" Transitional Jointer Plane   This early 26" closed handle patented jointer plane is in nice condition.   Note that the top plate with patent info does not extend all the way to the end like the others offered.  According to Roger Smith it is an earlier version than those above.  Roger Smith calls this style the first transitional that was made / manufactured and that it was the design that inspired Leonard Bailey just a few years later.

This early Worrall patent transitional plane has a great look to it and is a nice example of one of the earliest American Patented planes that can be found.  I am not sure if the color change on the bottom is a stain, or part of the wood.  It is not soft, rotten or - - - .  Nice, &  Different!!!

click for Pic             click for Pic             click for Pic             click for Pic             click for Pic

CCC-WOR-26

Fine  . . . . . . . $350.00

To Order Email:  patentedantiques@gmail.com





Knowles Type Patented Plane w/ Cut Out SidesKnowles Type Patented Plane w/ Cut Out Sides   Hazard Knowles was granted a patent for an iron bodied plane in 1827.  It is considered the first patent for a metal bodied plane granted in America. No known examples are marked.  Shortly after other versions of metal bodied planes based on the idea began to appear and are generally referred to as Knowles types.  In Vol. II of Smiths works on patented planes he pictures a plane identical to this one with the decorative cut-outs in the cast iron sides.   He calls it a Knowles type and provides some info based on how the cutter was marked.  Roger Smith covers the whole range of Knowles planes and Knowles type planes and their history, in some detail, in both volumes of his books on patented American planes. It is worth the read.

The overall condition of this 19" long plane is very nice with no damage to the cast iron body. The throat area is nice. There are no markings or patent info.  There is little to no rust or pitting.  It has not been over cleaned or fiddled with.  The infill shows appropriate and normal wear. There is some chipping to the handle.  It has its original wedge and a single cutter. The cutter is 2 3/8 and marked Ohio Tool which is probably a later replacement.    RARE, Nice, &  Different!!!

click for Pic             click for Pic             click for Pic             click for Pic             click for Pic


click for Pic             click for Pic             click for Pic             click for Pic

CC-KNOWLES

Good +  . . . . . . . $1250.00

To Order Email:  patentedantiques@gmail.com



English / Scottish & American
Rabbet & Infill Planes



Chariot Shoulder Rabbit Plane1" Bullnose Shoulder / Rabbet Plane  This is a very nice 1" wide rabbit plane. Unmarked that I can see.  Probably English.  No damage rust or pitting.  The cutter is a Stanley 93 that fits well   A nice plane.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

SBRG-CHARIOT

Good + . . . . . . $95.00

To Order Email:  patentedantiques@gmail.com






3/4 Bullnose Chariot Shoulder / Rabbet Plane 9/16" Bullnose Rabbet Plane  This is a nice 9/16" wide iron rabbet plane. Good throat.  Unmarked.   No damage, rust, or pitting.   A nice little plane.

Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-96THS-BN

Good + . . . . . . $95.00

To Order Email:  patentedantiques@gmail.com







Antique Bullnose Chariot Shoulder Rabbet PlanePreston 1" Brass Bullnose Rabbet Plane w/ Steel Sole  This is a nice 1" wide brass rabbet plane w/ steel sole. Good throat.  Cutter marked Preston.   A nice looking plane.

Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-1-PRESTON

Good + . . . . . . $195.00

To Order Email:  patentedantiques@gmail.com






Antique Bullnose Rabbet Plane5/8" Instrument Makers Bullnose Rabbet Plane   This is a nice 5/8" wide rabbet plane w/ pinned slab steel frame. Good throat.   An interesting little plane.

Click for Pic           Click for Pic           Click for Pic

CYN-58-4809-BN

Good + . . . . . . $75.00

To Order Email:  patentedantiques@gmail.com






1 1/8 Mathieson Bullnose Brass Rabbet Plane1 1/8" Mathieson Bullnose Brass Rabbet Plane   This nice 1 1/8" wide rabbet plane is marked on the top of the brass frame with the maker name. The cutter and body have the # 10 stamp.  The previous owner stamped his name into one side.  The sole is good.  Good tight throat.   Sharp, clean & nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-I18-MATH-BN

Good + . . . . . . $175.00

To Order Email:  patentedantiques@gmail.com






1 1/4 Brass Infill Rabbet Plane1 1/4" Brass Infill Rabbet Plane   This 1 1/4" wide rabbet plane measures just under 8" long.  It shows signs of use.  I see no maker marks.  Throat is OK.  Beautiful long cutter.  Sharp, clean & nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-I14-LONG-BN

Good + . . . . . . $125.00

To Order Email:  patentedantiques@gmail.com






Popping Brass Infill Rabbet Plane Antique New York Maker J. Popping 1" Brass Infill Rabbet Plane   This 1" wide Popping brass rabbet plane measures just over 4" long.  The cutter is marked Popping NY.  Owner marked N. Glass on the sides. Throat is OK.  Popping was one of several well know New York makers of Piano and instrument planes in the mid to late 19th century.  Pretty nice.

Click for Pic           Click for Pic           Click for Pic

CYN-I-POPPING

Good + . . . . . . $225.00

To Order Email:  patentedantiques@gmail.com






3/4 Brass Rabbet Plane3/4" Brass Rabbet Plane   This 3/4" wide brass rabbet plane measures just over 4" long.  It is set up with 2 piece cutter and chip breaker. Throat is good.  It is a pinned slab construction.   Pretty nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-3QTR-PIN

Good + . . . . . . $85.00

To Order Email:  patentedantiques@gmail.com






7/16 Brass Rabbet Plane7/16" Brass Rabbet Plane w/ Steel Sole   This small brass rebate plane measures 3" long.  Nice tight throat.  It is much smaller than the others rabbet planes listed above.   Unmarked.   Interesting.

Click for Pic           Click for Pic           Click for Pic

CYN-716-BRP

Good + . . . . . . $65.00

To Order Email:  patentedantiques@gmail.com






Bronze Squirrel Tail T  Rabbet Carriage Makers PlaneBronze Squirrel Tail T  Rabbet Carriage Makers Plane  This brass squirrel tail rebate plane measures 7" long tail to tail. It is 1 1/2" wide.  It has a swiveling metal cutter lock rather than a wooden wedge that is not often seen.  No maker marks.   Nice throat.  Sole is slightly radiused.  Interesting and nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-BTRAB

Good + . . . . . . $195.00

To Order Email:  patentedantiques@gmail.com





Iron Squirrel Tail T  Rabbet Carriage Makers PlaneIron Squirrel Tail T  Rabbet Carriage Makers Plane  This iron squirrel tail rebate plane measures a bit over 7" long tail to tail. It has a brass slide in cutter lock rather than a wooden wedge that is different and not often seen.  No maker marks.   Nice throat and cutter.  Sole is compassed.  Interesting and nice.

Click for Pic           Click for Pic           Click for Pic

CYN-I-TRAB

Good + . . . . . . $175.00

To Order Email:  patentedantiques@gmail.com

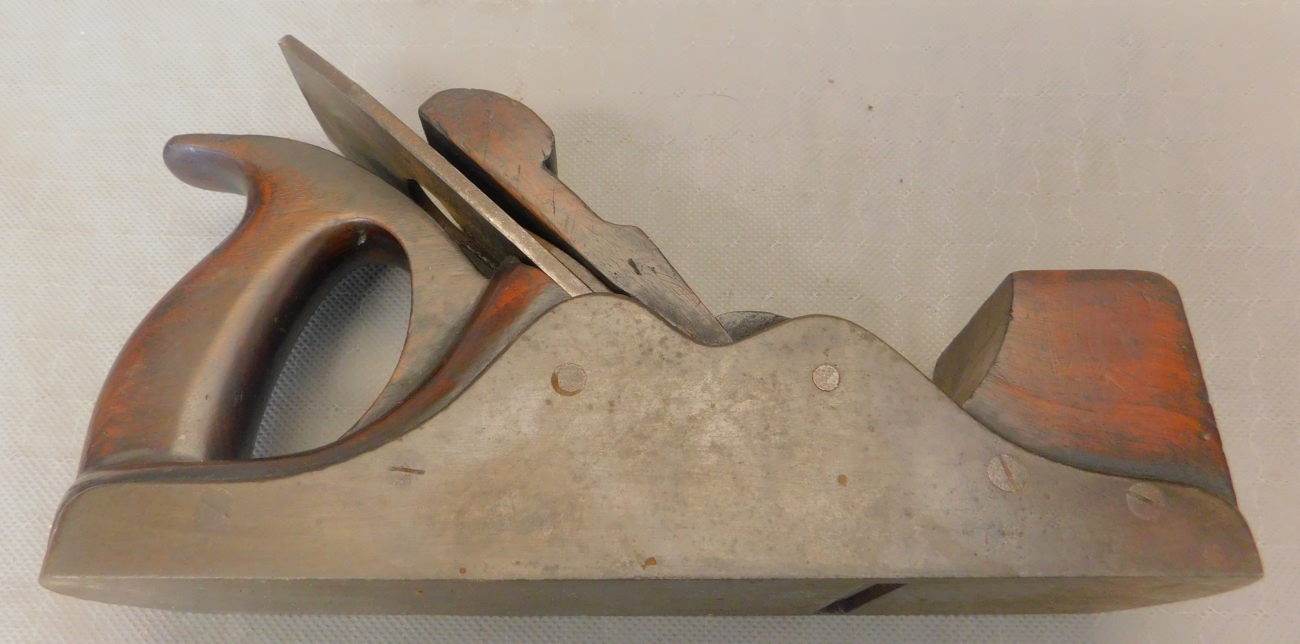

Scottish Walnut Infill PlaneScottish Walnut Infill Smooth Plane  The chip breaker is marked Mathieson.  The nice long cutter is by Sorby.  See all the pics!! Nice!!

Click for Pic                     Click for Pic                     Click for Pic


Click for Pic                     Click for Pic                     Click for Pic

RNO-INFIL

Good + . . . . . $195.00

To Order Email:  patentedantiques@gmail.com




Leonard Bailey's Planes
Victor / Defiance / Vertical Posts / Split Frames

Leonard Bailey produced the Victor line of planes after he left Stanley and struck out on his own.  He produced this line of planes for approx 18 years beginning in 1875.  The history of that endeavor and his interactions with Stanley during this period are documented in Roger Smiths books.



# 1 1/4 Tailed Victor Block Plane by Leonard Bailey & Co.# 1 1/4 Tailed Victor Block Plane by Leonard Bailey & Co.   The Victor #1 1/4 had a cast iron tail piece / handle.   The Victor #1 & #2 had flat sides, adjustable throats and the cutter adjustment.  The sides were flat & excelsior style.  These block planes could be had in different finishes as the 1 3/4 or the 2 3/4.  The bodies are drilled to accept a  rear handle which would change it to a 1 1/4 w/ rear handle or 1 1/2 with handle and nickel trim.  The same would apply to the 7" Victor planes where a  #2 becomes a 2 1/4 or 2 1/2. with a tail piece  Walters dates all of them as 1875 thru 1888, the period when Leonard Bailey had left Stanley and struck out on his own.  If you find that confusing, it is, and you need a copy of Walters book, a type study, and some reprints of old catalogs to sort it all out.

The cutter has lots of life left and the adjuster performs as it should.  Note how good the cutter logo is.   The paint on the plane is 90% or better and original. There is no rust or pitting to speak of.  The rear handle looks great but has been declared a recast by some experts.  The collector did not think so when he bought it, and paid dearly for it.

Click for Pic             Click for Pic             Click for Pic              Click for Pic              Click for Pic              Click for Pic

CYN-VIC-1QTR

Fine  . . . . . $2750.00

To Order Email:  patentedantiques@gmail.com






Defiance B Block PlaneBailey Tool Co. Defiance B Block Plane   Proper cutter with Battle axe logo.  No damage but shows its age. Used but solid.

click for Pic                    click for Pic                    click for Pic                    click for Pic                    click for Pic

CHC-BTC-DEF-B

Good   . . . . .  $450.00

To Order Email:  patentedantiques@gmail.com







Defiance B Block PlaneBailey Tool Co. # 9 Defiance Battle Axe Logo Compass Plane   Proper long cutter with Battle axe logo.  Cap looks to have a repair that is well done, and may be factory.  Smiths books give a detailed account of the relationship between Seldon and Leonard Bailey, and the planes produced in Woonsocket RI during the period after Leonard had left Stanley for a period.

click for Pic                   click for Pic                   click for Pic


click for Pic                   click for Pic                   click for Pic                   click for Pic

AMN-DEF-9

Good +   . . . . .  $195.00

To Order Email:  patentedantiques@gmail.com

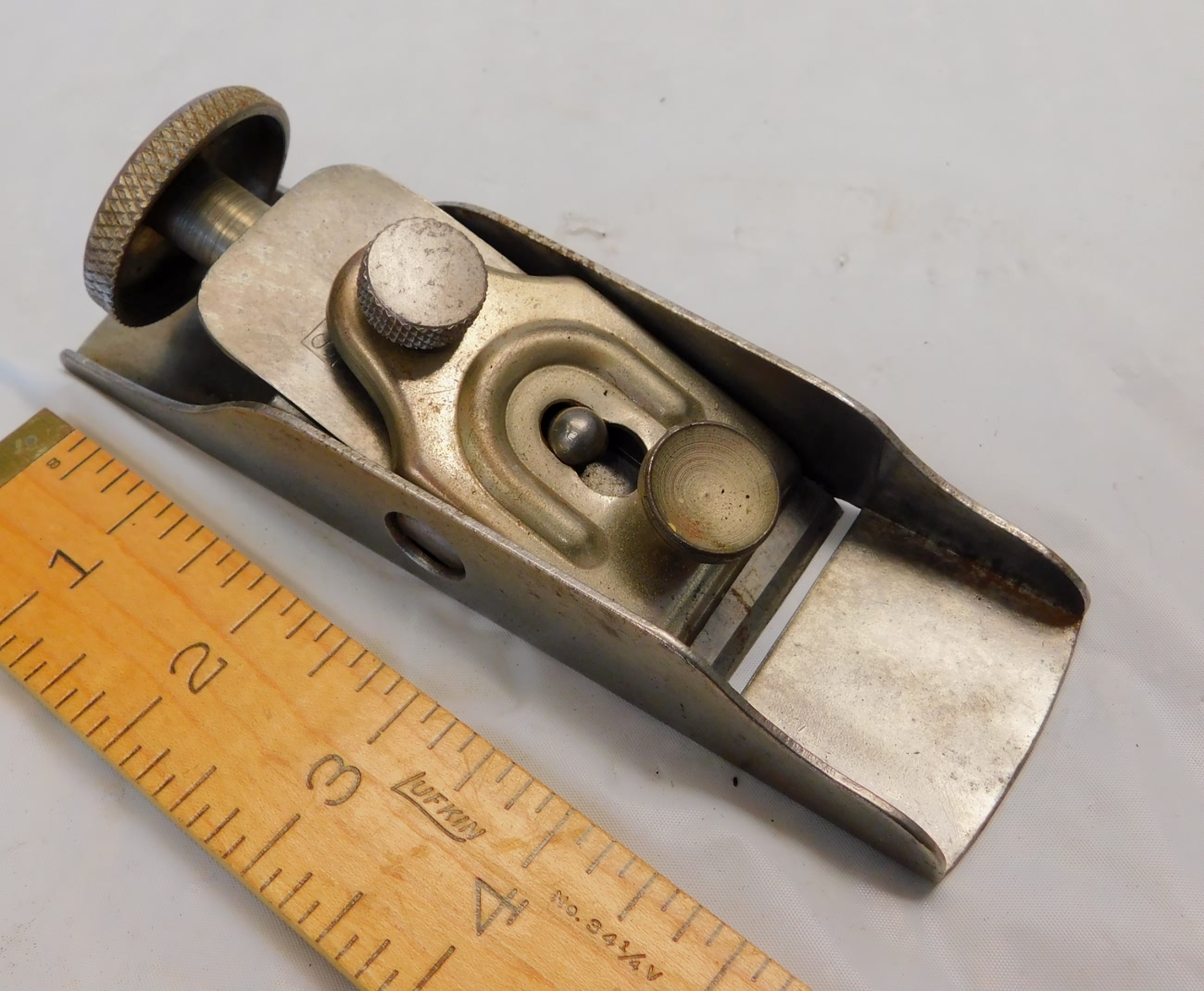

Leonard Bailey #50 Little Victor Block PlaneLeonard Bailey "Little Victor" # 51 Block Plane   Super condition.  80% of the original japanning.  No rust or pitting on sole. Nice long cutter.

click for Pic                    click for Pic                    click for Pic

SR-VICTOR-51

Good +   . . . . .  $225.00

To Order Email:  patentedantiques@gmail.com






Leonard Bailey Little Victor # 51 1/2 Block PlaneLeonard Bailey "Little Victor" # 51 1/2 Block Plane   Traces of original red paint. Nice overall condition.  No rust or pitting on sole. Nice long cutter.  This came from Tom Witte the legendary Antique Tool Dealer from the Midwest back in 1988.

Click for Pic           Click for Pic           Click for Pic

CYN-VICTOR-51HF

Good +   . . . . .  $225.00

To Order Email:  patentedantiques@gmail.com






Antique Leonard Bailey Little Victor # 50 & 51 Block PlanesLeonard Bailey "Little Victor" # 50 & 51 Block Planes   Three different variants on the theme.  Each has a different blade lock type.  On the left the cutter tightener is a looped screw.  I believe this is correct for early models.  The next one in the middle has a star wheel to tighten the cutter.  On the right same idea plus the adjustment can be locked with the brass knurled nut below the star.

Click for Pic           Click for Pic           Click for Pic

CYN-VICTOR-LL                 CYN-VICTOR-MS                    CYN-VICTOR-RSL

Left     Good +   . . . . .  $225.00

Mddle    Good +   . . . . .  $250.00

Right     Good +   . . . . .  $295.00

To Order Email:  patentedantiques@gmail.com



E. C. Simmons Hardware Co. / Keen Kutter Woodworking Planes



Keen Kutter / Simmons Hardware K 9 1/2 - 9 3/4 Tailed Block PlaneKeen Kutter / Simmons Hardware K 9 3/4 Tailed Block Plane This unusual Keen Kutter tailed block plane is marked  K 9 3/4 on the lateral.  Given the style of the cap, and the round handy features on the side rails I believe this was made by Ohio Tool Co., one of the several companies that Simmons Hardware Co of St Louis MO. used to make their different lines of tools and planes which Simmons then branded with their famous trade name Keen Kutter.

The overall condition is fine with well over 90% of the original japanning, and no rust, pitting, or other condition issues.  It has a nice long properly marked cutter as well.  A pretty rare piece in the scheme of things.  One would expect to see 100 Stanley 9 3/4 planes for every one of these that turns up.  An opportunity ready for the collection.

click for Pic                  click for Pic                  click for Pic


click for Pic                  click for Pic                  click for Pic

GS-K93QTR

Fine  . . . . . . $ 375.00      SOLD!!





K 4 1/2 C Keen Kutter / Simmons Hardware Corrugated Bottom Extra Large Smooth Plane (Bedrock 604 1/2 C)K 4 1/2 C Keen Kutter / Simmons Hardware Corrugated Bottom Extra Large Smooth Plane (Bedrock 604 1/2 C)  Super condition, and a hard to find plane in its own right.  Simmons Hardware marketed their line of planes under the Keen Kutter name and over the years had several different tool makers like Stanley Ohio and Sargent make planes for them under contract.

At one point after the turn of the century they contracted with Stanley to make their planes based on Stanley's Bedrock plane design. These Stanley made planes were denoted as the K series. They came in sizes K2 thru K8. These bedrock design planes have all the same features of early Stanley Bedrocks including the milled frog and external frog adjuster.  It really is a superior design.

This example is in super original condition. 95% or better japanning.   The rear handle is original and Rosewood.  It has a proper low front knob.  did nothing more than wipe off the dust.  Original grind on the proper marked cutter. Top shelf condition for the collection, or tuned and properly set up this plane will make for a great user. Very Nice!!

click for Pic                    click for Pic                    click for Pic                    click for Pic                    click for Pic


click for Pic                    click for Pic                    click for Pic                    click for Pic

PAEM-KK4HF

Fine . . . . .  $250.00

To Order Email:  patentedantiques@gmail.com






Simmons Hardware / Keen Kutter K5 C Corrugated Bottom (Stanley Bed Rock) Jack PlaneSimmons Hardware / Keen Kutter K 5 C Corrugated Bottom (Stanley Bed Rock) Jack Plane  Super condition.  Simmons Hardware marketed their line of planes under the Keen Kutter name and over the years had several different tool makers like Stanley, Ohio, and Sargent Tools make planes for them under contract.

At one point, after the turn of the century, they contracted with Stanley to make their planes based on Stanley's Bedrock plane design. These Stanley made planes were denoted by Simmons as the K series. They came in sizes K2 thru K8. These bedrock design planes have all the same features of early Stanley Bedrocks including the milled frog and external frog adjuster.  It really is a superior design.

This example is in very nice original condition. The rear handle looks good. It has a proper low front knob. Long proper marked cutter. Top shelf condition for the collection, or tuned and properly set up this plane will make for a great user. Very Nice!!

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

MOA-K5C

Good + . . . . . $75.00

To Order Email:  patentedantiques@gmail.com





Keen Kutter / Simmons Hardware K 5 1/2 Large Jack Plane (Bedrock 605 1/2)Keen Kutter / Simmons Hardware K 5 1/2 C Corrugated Bottom Large Jack Plane (Bedrock 605 1/2 C)  Simmons Hardware marketed their line of planes under the Keen Kutter name and over the years had several different tool producers make planes for them.  At one point they contracted with Stanley to make their planes based on Stanley's Bedrock plane design.  These Stanley made planes were denoted as the K series. They came in sizes K2 thru K8.  These bedrock like planes have all the same features of early Stanley Bedrocks including the milled frog and external frog adjuster.   It really is a superior design, then and now.

This example is in good condition.  The rear handle is Rosewood and it has a proper low front knob.  It has been lightly cleaned.  Tuned and set up properly this will make for a great user at a fraction of the cost of an early Stanley 605 1/2 or some new remake offered today. Very Nice!!

Click for Pic                    Click for Pic                    Click for Pic


Click for Pic                    Click for Pic                    Click for Pic

RB-K5HF

Fine  . . . . . $125.00

To Order Email:  patentedantiques@gmail.com


Union & Ohio Tool Co. Planes & Tools



Ohio Tool Co # 0102 Block Plane Ohio Tool Co # 0103 Block Plane   This is a nice example. World Logo cutter.  No rust, pitting, or other damage. A nice example!!

Click for Pic             Click for Pic             Click for Pic

RNO-OHIO-102

Good  . . . . . $12.00

To Order Email:  patentedantiques@gmail.com



Millers Falls Planes & Tools



Millers Falls 1220 Sureform ToolMillers Falls 1220 Surform / Rasp Plane     Very Nice!

Click For Pic            Click For Pic

SR-MF-1220

Good + . . . . .  $10.00

To Order Email:  patentedantiques@gmail.com



Woodworking Planes & Tools by
Sargent Tool Co.  Including Marshall Wells / Zenith



Sargent 707 Auto Set Smooth PlaneSargent 707 Auto Set Smooth Plane  Nice overall condition.  Some loss of finish on the bed of the body.  Long proper cutter w/ stamp faint.  No rust or pitting.  You can still see the milling marks on the sole.  Good throat.

The tag indicates I sold this to the collector in July of 1991.  30 years ago.  It is one of those planes I'll remember buying forever.  It was late afternoon on a Sunday at a 3 day old garage sale in Florida.  Interesting and nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic


Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-SARG-707

Good + . . . . . . $595.00

To Order Email:  patentedantiques@gmail.com





Zenith Marshall Well # 409 (4 Size) Smooth Plane "Zenith" Marshall Wells # 409 C (4 Size) Corrugated Bottom Smooth Plane  Sargent made this plane for Marshall Wells.  The Zenith logo etch on both sides is clearly visible.  It is also on the cutter.  The one apology is the reglued handle.  A very nice example.

Click for Pic             Click for Pic             Click for Pic             Click for Pic


Click for Pic             Click for Pic             Click for Pic             Click for Pic

MFLE-MW-409

Good +  . . . . . $55.00

To Order Email:  patentedantiques@gmail.com






Sargent No. 722 Jointer PlaneSargent No. 722 C Corrugated Bottom Jointer Plane  Nice overall condition.  No issues.  All proper.  Long proper marked cutter, nice wood.  No apologies.  Nice enough for the collection, or tune it up and go.  Nice!!

click for Pic                   click for Pic                   click for Pic


click for Pic                   click for Pic                   click for Pic                   click for Pic

AMN-SARG-722

Good + . . . . . $95.00

To Order Email:  patentedantiques@gmail.com





Fulton / Sargent 1080 Combination PlaneFulton / Sargent 1080 Combination Plane   Sargent made this for Sears who at the time was offering a line of woodworking planes under the name of Fulton.  I believe this was before they introduced the Craftsman line of tools.  Great condition.  Plane looks to have seen little to no use.  Light rust on some of the cutters.  A nice example overall.

click for Pic            click for Pic            click for Pic            click for Pic


click for Pic            click for Pic            click for Pic

TX-SARG-FUL45

Good + . . . . . $90.00

To Order Email:  patentedantiques@gmail.com






Sargent 1080 Combination PlaneSargent 1080 Combination Plane   Great condition in original pasteboard box.  Original instructions.  Plane looks to have seen little to no use.  Light rust that will clean on the cutters.  A nice example.

click for Pic            click for Pic            click for Pic            click for Pic

TX-SARG-1080

Good + . . . . . $175.00

To Order Email:  patentedantiques@gmail.com






Sargent & Co. 1894 Catalog Sargent & Co. 1894 Catalog  Good overall condition on the interior.  Some damage to the outer binding hinge (taped).  Super illustrations.  Sargent's main focus at this point was Hardware including door knobs, locks and associated hardware, more than tools and planes.   There are plenty of them as well as a full line of other tools and general line of household goods from the era.  Well over 1000 pages.    While the cover says 1894 there are added inserts and updates including a "new" price list for pics and hoes dated 1899.  A wealth of information and history.

click for Pic            click for Pic            click for Pic            click for Pic            click for Pic


click for Pic            click for Pic            click for Pic            click for Pic            click for Pic


click for Pic            click for Pic            click for Pic            click for Pic            click for Pic            click for Pic


click for Pic            click for Pic            click for Pic            click for Pic            click for Pic            click for Pic

AMN-SARG-1894

Good  . . . . . $495.00

To Order Email:  patentedantiques@gmail.com



Misc. Woodworking Planes & Tools
 by Lesser Known Makers



Shapleigh Hardware Co. Diamond Edge / DE-7 Jointer PlaneShapleigh Hardware Co. Diamond Edge / DE-7 22" Jointer Plane  This 22" jointer plane is marked DE-7 on the bed and has a properly marked long cutter.  The hard rubber handle is also marked with the name and other info.  80% or better of the original japanning.  No structural issues.  A good user.  Nice!!

Click for Pic                  Click for Pic                  Click for Pic                  Click for Pic


Click for Pic                  Click for Pic                  Click for Pic

SBRG-DE7

Good + . . . . . $75.00

To Order Email:  patentedantiques@gmail.com






Chaplin Improved Patent Block PlaneChaplin Improved Patent Block Plane    The name and several patent dates are stamped into the side.  The tags will come off easily.  They indicate it was added to the collection in 1991 and came from the once great Roseville CA Flea Market named Denio's which is now an ocean of garbage.   Interesting.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-CHAP-BLK

Good  . . . . . . $35.00

To Order Email:  patentedantiques@gmail.com






Chaplin # 233 Smooth Plane w/ Adjustable NoseChaplin # 233 Smooth Plane w/ Adjustable Nose   The base of the hard Rubber handle is broken off and it has a Stanley cutter in it.  The rest is pretty nice.   Chaplin planes with a moveable front piece to adjust the throat are very hard to find..  If not for the handle apology the price would be far higher.  Interesting and nice.

Click for Pic           Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-CHAP-233

Good + . . . . . . $45.00

To Order Email:  patentedantiques@gmail.com





Shapleigh Diamond Edge 05C Jack PlaneShapleigh Diamond Edge 05C Jack Plane  The name and patent date info is cast into the body.  It has a nice carved handle.  The cutter is marked and OK.  This design planes was originally known as the Buckeye and hailed from Ohio.  The second run were contracted for by Norvell Shapleigh Hardware.

Click for Pic           Click for Pic           Click for Pic


Click for Pic           Click for Pic           Click for Pic

CYN-DE5-PLN

Good  . . . . . . $75.00

To Order Email:  patentedantiques@gmail.com







Antique Dado cleaning Plane1 1/16" Dado Cleaner    This unusual dado bottom cleaner plane measures just over 4" long.  It is set up to clean the bottom corners of a dado that is just over 1" wide.  It has a small wedge shape nicker that projects out from each side at the bottom designed to cut loose any floating slivers left behind.  Unmarked.  Good age.   Interesting..

Click for Pic           Click for Pic           Click for Pic           Click for Pic

CYN-116-NICK

Good + . . . . . . $35.00

To Order Email:  patentedantiques@gmail.com



We can help you sell your quality Antiques in this and other categories of Antiques.

If you have similar antique or collectible tools you want to sell please see our
FAQ Page, the Appraisal / Selling Page, and the Selling Your Collection Pages for further info about selling with us.

To view examples of the types of antiques and collectibles we have previously sold and are always interested in helping you sell please visit our Past Sales Archive Pages at our sister website www.AntiqBuyer.com.


BACK to Antique Planes



This website is Copyrighted
Larry & Carole Meeker
